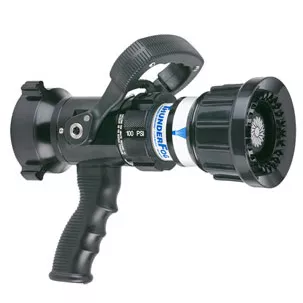

The Thunderfog Series of nozzles are designed for simple operation and rugged durability in structural and industrial firefighting operations.
Available in tip only configurations or with a stainless steel ball shutoff and optional color coded nylon pistol grip, this series incorporate lightweight aluminum construction, reflective labeling, and stainless steel components with a protective front rubber bumper.
The 200 and 250 Thunderfog Series, are available with either TFT’s uniquely cut style of fixed fog teeth, or TFT’s popular stainless steel spinning teeth to provide a wide protective fog pattern. All models also accept either a low or multi-expansion foam aspiration attachment.
- Selectable gallonage nozzle with five flow settings of 95, 125, 150, 200, and 250 gpm @ 100 psi (360-470-570-750-950 l/min @ 7 bar)
- All lightweight materials, hardcoat anodized aluminum
- Flush without shutting down
- Quick-change rear valve seat and stainless steel shut-off ball
- Pistol grip is mounted below the valve
- 2.5″ NH swivel rocker lug coupling is standard
- FM Approved
- Weight: 6.9 lbs
- Protective Rubber Bumper
- Fixed fog teeth
- Laser engraved serial number
- Reflective labeling
- Five year warranty
All Thunderfog Series ball shutoff models offer TFT’s unique quick change rear valve seat that requires no special tools or disassembly of the valve to change the rear seat assembly. The shut off handle can be color coded, laser engraved, and is produced from nylon to withstand harsh operation conditions without breaking or bending.
| Flow Control | Selectable Flow at a pressure (constant gallonage, flow does not change with pattern) |
| Flow Rate | 95, 125, 150, 200, and 250 gpm @ 100 psi (360-470-570-750-950 l/min) |
| Coupling Size (Nozzles) | 2.5” (65 mm) |
| Coupling Style (Nozzles) | Rocker |
| Coupling Swiveling/Rigid (Nozzles) | Full time Swivel |
| Pressure | 100 psi (7 bar) |
| Nozzle Body | Nozzle with shutoff and pistol grip |
| Valve Design | Ball Valve (stainless) |
| Valve Actuation | Horseshoe (injection molded nylon w/colored handle) |
| Fog Pattern | Fixed cut metal teeth |
| Nozzle Bumper | Rubber – press fit |
| Certifications<certifications</certifications | NFPA/FM |
| Foam Expansion | N/A |
| Pattern Actuation | Manual |
