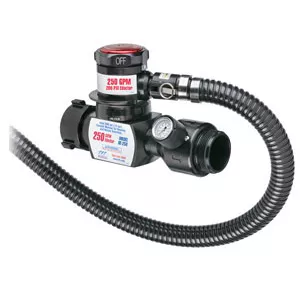

Task Force Tips Inline Foam Eductor, 2.5″
The portable Inline Foam Eductor has large, easy-to-change, and simple-to-read injection rate metering head indicators that allows for accurate mixing of Class A at 0.25 and 0.5 %, and AFFF, or AFFF-AR foam concentrates at 1, 3, or 6%. The extra large 36” pickup hose and stainless steel wand (60, 95 and 125 gpm eductors) and the large 8 foot industrial grade UV resistant pickup hose (250 and 350 gpm eductors) are designed for use with all types of foams, including the thicker alcohol resistant concentrate — which is easily and accurately picked up and injected into the water line. The maximum allowable back pressure is 130 psi (9 Bar).
- Flow capability is 250 GPM, or 350 GPM with inlet pressure of 200 psi
- Maximum allowable back pressure is 130 psi
- Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear
- 2.5″ NH (65mm) full-time swivel rocker lug inlet coupling and 2.5″ NH (65mm) rigid male outlet is standard
- Weight: 15.0 lbs
The unit has a protected pressure gauge on the outlet and a unique push-button backflush feature allows for easy flushing of foam residue from the eductor, assuring functionality during the next operation. A Quick Release Locker Ring allows eductor body to be detached from the metering head for easy storage. It is designed for easy use with gloves.
The unit is covered by a five-year warranty.
