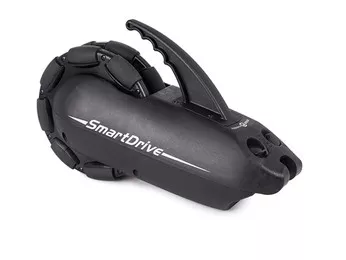

SmartDrive MX2+ Power Assist System by Permobil
The SmartDrive MX2+ is the most innovative & lightweight rear-attaching power assist on the market!
Incredibly light and portable, yet strong and robust. Though small, it is powerful enough to help you navigate your wheelchair over almost any obstacle and terrain. It also has the strength to easily power you up steep hills and ramps. The SmartDrive MX2+ is Max Mobility’s latest generation of the SmartDrive power assist. If you loved the SmartDrive MX1+, then you will love the MX2+. Many of the features of the MX1+ have been fine-tuned to make the MX2+ better than ever. The SmartDrive MX2+ is now a convenient single design with a built-in rechargeable battery pack. What sets the SmartDrive MX2+ miles ahead of its competition is the intuitive controls. Operated with a sleek motion sensing wristband that communicates with the drive motor through Bluetooth technology, the MX2+ knows when you want to go and when you want to stop.Save your shoulders and joints from overuse.Once you own a SmartDrive, you will never want to leave the house without it… and you won’t have to because it is sealed and water resistant. Use it in the rain and drive straight through puddles if you want!
SmartDrive MX2+ Features
Quick Installation and RemovalEasy installation and removal gives you the freedom to take the SmartDrive MX2+ anywhere. |
|
Long-Range Rechargeable Lithium BatteryThe MX2+ includes a next generation lithium ion battery that lasts at least a day on a single charge, equivalent to about 12.3 miles for most users. The battery has no “memory,” so you can charge it every night without consequence. |
|
Easy MountingMounts to both rigid and folding wheelchairs with ease. We do the hard work for you and select the correct mounting hardware. |
|
Bluetooth Enabled iPhone App : Click HereWith the PushTracker Smartphone App, wirelessly sync & send your daily data via Bluetooth® from your PushTracker wristband for an in-depth look.Within the App you can easily:
|
|
SpeedGive it an easy push to go slow or give it a few quick pushes and the SmartDrive will increase speed to a maximum of 5.5 mph. This gives you the freedom to roll slowly next to someone who’s walking, or roll faster to fly around at a running speed. |
|
Range of MotionThe omni-directional wheel in the back allows 360 degrees movement of your wheelchair. The SmartDrive MX2+ also has an anti-roll back feature that allows you to stop on a hill or slope and then easily get going again. |
|
POWERFULThe SmartDrive is surprisingly powerful. You can cruise up the steepest ramps and sidewalks. Even a thick padded hotel carpet is no problem. It even has an anti-rollback feature that allows you to stop on a hill and then easily get going again. |
|
CUSTOMIZABLENow with PushTracker the SmartDrive power assist can be individualized, allowing tweaks to the tap sensitivity, top speed and more. Also equipped with different selectable modes, you can easily pick the one that is best for your desired activity level and needs. But no matter what mode you chose, using the SmartDrive is intuitive and easy. |
Wearable Options
| Apple Watch | Samsung Galaxy |
| watchOS Operating System |
Wear OS by Google™ Operating System |
| iPhone required | No phone or Wi-Fi required |
|
Touchscreen |
Touchscreen |
| 40mm – 45mm Case Sizes |
40mm – 44mm Case Size |
| Battery Life | Battery Life |
| Not sold by Permobil | Not sold by Permobil |
|
Switch ControlSwitchControl is another option for controlling the SmartDrive MX2+. It now comes standard, at no extra cost.With the push of a button SmartDrive can be engaged for a momentary burst of power or activated in latched mode for consistent power over extended distances. This empowers a more diverse user population to experience SmartDrive with increased confidence and when paired with the PushTracker E3 offers added flexibility, convenience and control options. |
|
| Handle Options | |
| Easy InstallThe SmartDrive is lightweight and easy to install. The system weighs only 12.5 lbs (5.7kg) and simply attaches on the back of the chair. It can be fit on essentially any make and type of wheelchair, including folding, tilt-in space, one-arm drive and standing.The SmartDrive gives you freedom to do more. It moves with you and it’s so lightweight, you don’t even know it’s there. You can spin in place, be in a wheelie, or hop off curbs. It is compatible with your active lifestyle! |
Technical Specifications
| Range | 12.3 miles (19.8 km) |
| Maximum speed (level surface) | 5.5 mph (8.9 km/h) or 4 mph (6 km/h) for Speed Limit |
| Maximum speed (6o incline) | 5.3 mph (8.5 km/h) |
| Maximum acceleration | 2.0 ft/s2 (0.6 m/s2) |
| Motor power | 250 W |
| Motor voltage | 36 V |
| Operating temperature | -25 oC to 50 oC |
| Continuous theoretical driving range | 14.2 miles (22.9 km) |
| Total weight | 13.5 lbs (6.1 kg) |
| Sound level | 60.7 dBA |
| Expected lifetime / service life | 5 years |
| Contains Bluetooth LE | FCC ID QOQBT113 IC ID 5123A-BGTBLE113 |
NOTE: The stated values are from testing with a 331 lb. occupant. The range, speed, etc. vary depending on driving conditions.
Drive Unit Dimensions
| Overall length: | 15.3 in (389 mm) |
| Overall width: | 5.7 in (141 mm) |
| Overall height: | 9.5 in (242 mm) |
| Omni-wheel diameter: | 7.6 in (193 mm) |
| Omni-wheel width: | 2.8 in (71 mm) |
| Weight: | 12.5 lbs (5.7 kg) |
| Contained battery type: | Lithium-Ion (Lithium Iron Phosphate) |
| Nominal operating voltage: | 36V |
| Electric charge: | 3.4 A-h |
Wheelchair Compatibility
| Wheelchair frame type: | Both Rigid and Folding |
| Drive wheel diameter: | 22, 24, 25 or 26 in (501, 540, 559 or 590 mm) |
| Folding frame attachment distance: | 8.25 to 21.0 in (210 to 533 mm) |
| User weight Capacity: | 30 to 331 lbs (14 to 150 kg) |
Wired control options
|
SwitchControl |
SwitchControl with Mono Jack Option |
SwitchControl with Buddy Button |
|
Simple control option included with every SmartDrive |
Adds a mono jack port for external switch access |
Large, highly responsive Buddy Button for easy activation |
|
Fully programmable settings (speed, acceleration, control mode) |
All the features of the standard SwitchControl plus more flexibility |
All the features of the standard SwitchControl plus more flexibility |
|
Tactile feedback for confident use |
Fully programmable settings (speed, acceleration, control mode) |
Fully programmable settings (speed, acceleration, control mode) |
|
Sleek, lightweight and easy to position anywhere |
Tactile feedback for precision control |
Tactile feedback for precision control |
|
Great choice for straightforward everyday use |
Ideal for users who want alternate switch positioning or access methods |
Best for users who prefer a bigger surface for quick, confident control |
* Limit (1) free wired controller with the purchase of a SmartDrive unit.
Videos
How to Install Buddy Button Video
How does the Smart Drive MX2+ Works Video
SmartDrive MX2+ Downloads
SmartDrive MX2+ User Manual
SmartDrive MX2+ Buttons Instructions (CURRENT)
SmartDrive MX2+ Axle Clamp Instructions (CURRENT)
SmartDrive MX2+ Folder Adaptor Bar (CURRENT)
SmartDrive MX2+ Folder Inserts Instructions (CURRENT)
SmartDrive MX2+ Spec Sheet (CURRENT)
SmartDrive MX2+ Wristband Instructions (CURRENT)
SmartDrive Airline Passenger – IATA Certificate (CURRENT)
For more videos on how to operate the new E3 Pushtracker and Smartdrive MX2+, see Permobil’s Youtube channel Here
SmartDrive MX2+ Power Assist System Buyer’s Guide
The SmartDrive MX2+ Power Assist System provides powered assistance to manual wheelchair users, reducing the effort needed to navigate various terrains.
SmartDrive MX2+ Power and Performance
SmartDrive MX2+ Power Assist System offers robust power to manual wheelchairs, allowing users to traverse ramps, carpet, and rough surfaces with ease. The efficient motor provides consistent support.
SmartDrive MX2+ Power Assist System Control
Users can control the SmartDrive MX2+ through a convenient wristband or smartphone app. The intuitive controls enhance user experience and autonomy.
Battery Life
A long-lasting battery ensures extended use without frequent recharging. Users can rely on the SmartDrive MX2+ for a full day of activities.
Portability
This SmartDrive Power Assist System is lightweight and easy to attach and detach, making it portable and convenient for travel.
SmartDrive MX2+ Power Assist System Safety
Safety features like anti-rollback and speed control provide added security, ensuring a safe and controlled experience.
SmartDrive MX2+ Power Assist System Review
The SmartDrive MX2+ Power Assist System offers robust power and intuitive control, enhancing mobility and reducing physical strain.
40mm – 44mm
Case Size
