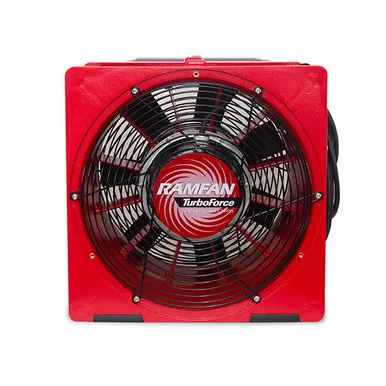

Designed for use in confined spaces, RAMFAN’s Safer Smoke Ejectors provide high velocity flows that decrease smoke ejection time dramatically.
Safer Smoke Ejectors are built with the same high-impact, heat-resistant Lexan® housing found in RAMFAN Standard Smoke Ejectors, but instead use a UL/IECEx/ATEX-certified explosion-proof motor for use in areas where potentially explosive gases are unlikely to be present but “just-in-case” safety is the priority.
- Totally encapsulated, explosion-proof motor
- High velocity flow decreases smoke ejection time dramatically, especially in confined spaces
- High-impact, heat resistant Lexan® polycarbonate housing with 4-corner handles allows for fast setup and storage
- Lightweight, compact design stacks easily
- Polymer TurboForce™ impeller provides increased shatter resistance and enhanced performance
Specifications:
| EA7000X-EZ-L5-20P | EA7000X-EZ-L6-20P | EG8000X-EZ-L5-20P | EG8000X-EZ-L6-20P | |
|---|---|---|---|---|
| Free Air (15ft/4.6m, 1 – 90° turn) |
3,200cfm/5,440m3/hr 1,935cfm/3,289.5m3/hr |
3,200cfm/5,440m3/hr 1,935cfm/3,289.5m3/hr |
4,459cfm/7,580.3m3/hr 3,179cfm/5,404.3m3/hr |
4,459cfm/7,580.3m3/hr 3,179cfm/5,404.3m3/hr |
| Impeller | 21-blade | 21-blade | 7-blade | 7-blade |
| Weight | 46lbs/21kg | 46lbs/21kg | 55lbs/25kg | 55lbs/25kg |
| Dimensions (h/w/d) | 19/18/12 in (483/457/305 mm) | 19/18/12 in (483/457/305 mm) | 19/18/12 in (483/457/305 mm) | 19/18/12 in (483/457/305 mm) |
| Noise | 90.2dB | 90.2dB | 90.2dB | 90.2dB |
| Motor | 0.5Hp/0.37kW | 0.5Hp/0.37kW | 1.5Hp/1.1kW | 1.5Hp/1.1kW |
| Electric | 115VAC, 1ø, 50Hz | 230VAC, 1ø, 60Hz | 115VAC, 1ø, 50Hz | 230VAC, 1ø, 60Hz |
| Amps | Start – 115V: 21A Run – 115V: 6A |
Start – 230V: 10A Run – 230V: 3A |
Start – 115V: 80A Run – 115V: 15A |
Start – 230V: 40A Run – 230V: 8A |
| Approvals | CE | CE | None | None |
