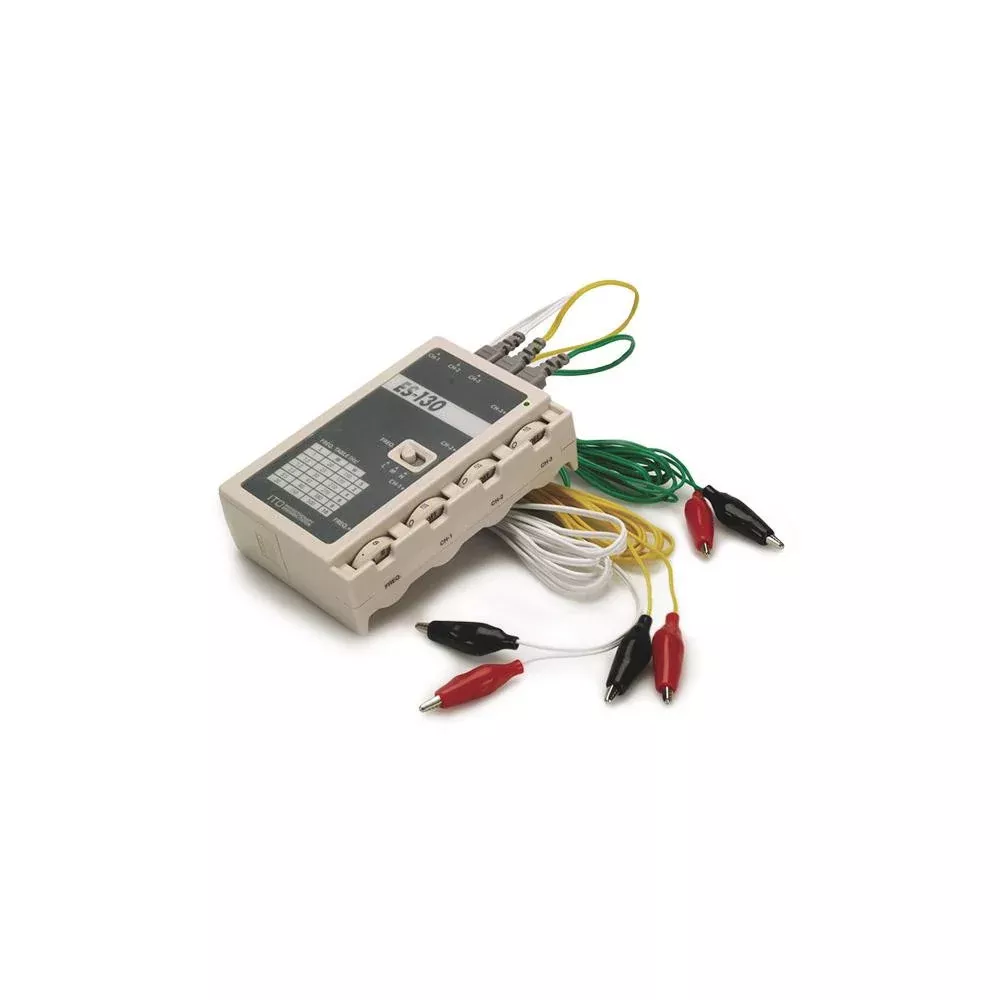

The ES-130® is a compact, sturdy, high quality Japanese electro-therapy device that is light weight and fits in the palm of your hand. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light. The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle.
The pocket-portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.
Accessories include 3 sets of new CE wire leads with rectangular CE jack, carrying case, and instructions. Does not include battery.
Warranty: 1 year, unit only
Specifications 500 ohm test load
- Output Channels: 3 independent intensity channels
- Frequency (adjusted with the fine frequency dial): L – 1-20 Hz, M – 20-150 Hz, H – 150-500 Hz
- Low volts and current: 0-10 volts, 0-20 milliamps
- High volts and current: 0-20 volts, 0-40 milliamps
- Voltage, max: 30 volts
- Pulse width: 100 microseconds (µS)
- Pulse shape: asymmetric biphasic square wave
- Pulse modes: continuous
- Power source: 9 volt battery
- Frequency indicator: flashing red light
- Size, weight, color: 4.5″ x 3.2″ x 1.2″, 0.3 lbs., Gray
