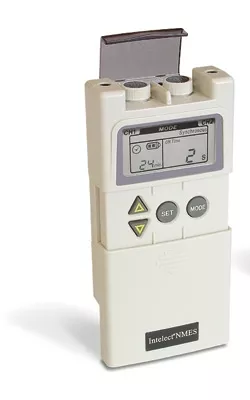

Intelect NMES Digital
(NeuroMuscular Electrical Stimulation) – Portable Electrotherapy 77717
For the Prevention of Disuse Atrophy as well as Muscle Re-Education, Increasing Range of Motion and Increasing Circulation.
The portable electrotherapy unit is a compact,battery-powered medical-grade device that delivers controlled electricalstimulation through self-adhesive electrodes placed on the skin. Designed foruse at home or in clinical settings, this device provides non-invasiveneuromuscular or nerve stimulation — ideal for pain relief, musclere-education, circulation enhancement, and muscle maintenance. This unit wasdesigned to be compact, and easily fits into a carrying case and can betransported or stored without hassle.
It includes all necessary accessories:lead wires, 9-volt battery, DURA-STICK Self-Adhesive Electrodes and aconvenient carrying case.
- DualIndependent Output Channels — for treating two separate areassimultaneously or using multiple electrodes.
- AdjustableStimulation Parameters — including pulse amplitude, frequency,pulse width, contraction/relaxation times (for NMES), and timer settings.
- PortableLightweight Housing — often 2–3 lbs, with compact dimensionssuitable for easy carrying and storage.
- CompleteKit — includes the stimulator unit, llead wires, 9-volt battery,DURA-STICK Self-Adhesive Electrodes and a convenient carrying case.
Dimensions: 1.2″ x 4″ x 2.3″
Weight: 2 lbs
Features
- Dual Independent Channels
- Adjustable Pulse Amplitude, Pulse Frequency and Contraction/Relaxation Time parameters
- Digital unit features
- Adjustable Pulse Width and Timer parameters
- Three stimulation modes: Synchronous,Constant and Alternate
- Easy-to-read LCD display and convenient digital controls
- Patient compliance timer
- Digital LCD display
Click To View Users Manual
Standard Accessories:
Lead wires
9-Volt Battery
DURA-STICK Electrodes
Carrying Case
Technical Specifications:
Channel: Dual channels, isolated between channels
Pulse Amplitude: 0 ~ 80mA = 0 ~ 40 Volts, adjustable (at 500 ohm load)
Pulse Frequency (Hz): 2 ~ 120
Pulse Width (μs): 50 ~ 300
Contraction (On) Time (sec): 2 ~ 99, adjustable
Relaxation (Off) Time (sec): 2 ~ 99, adjustable
Waveform: Asymmetric biphasic square pulse.
Timer Control (mins): 5 ~ 90 mins or continuous
Stimulation Modes: S, C, A
Power Supply: 9V DC square shape battery
Size (D x W x H): 0.9″ x 2.3″ x 4.0″ (24 mm x 59 mm x 101 mm)
Weight (including battery): 4.4 oz (124 g)
Safety standard: EN EN60601-1, EN EN60601-1-2 , EC 60601-2-10
Operation Ambient Temperature Range: 50 ~ 95 F (10 ~ 35C)
Operation Ambient Humidity Range: 20 ~ 90% RH
Storage & Transportation Temperature Range: 32 ~ 158 F (0 ~70C)
Storage & Transportation Humidity Range: 20 ~ 90% RH
