It can save your life. It’s that simple.

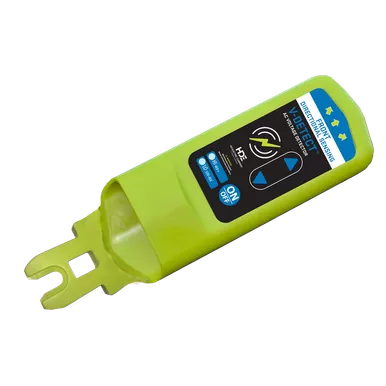

The V-Detect Utility Grade Voltage Detector provides first responders with a safety tool that will alert them to potentially dangerous high voltage in their work area.
The V-Detect design features:
Versatile, lightweight, water resistant housing and rugged design enables first responders to easily manipulate the V-Detect safely in the harshest of conditions. All of this achieved while weighing less than 1 pound.
- Sealed to resist water penetration in typical outdoor environments
- Rechargeable battery – 15 minutes for a full day of typical use
- Heartbeat signal assures that the V-Detect is on and ready to detect voltage
- Rugged, durable housing
- Dual hotstick connections – universal spline and shotgun stick
- Loud beeper and flashing LED lights indicate voltage
- Easy to use electronic touch pad with large buttons
Tech Specs
- Operating Voltage Ranges: Two standard voltage ranges
- 50VAC – 4kVAC (LO)
- 4kVAC- 500kVAC (HI)
- Typical Warning Distance: 3 inches at 50V LO range, 10 inches at 4kV HI range – higher voltages will result in greater detection distances
- Operating Temperature: -20°F to +140°F | -29°C to +60°C
- Operating Frequency: 25Hz-400Hz
- Battery Life: One week of typical daily use after full charge
- Weight: 11 oz. | 0.31 kg
- Dimensions: 11”L x 3”W x 2”D | 28 cm x 7.6 cm x 5 cm
