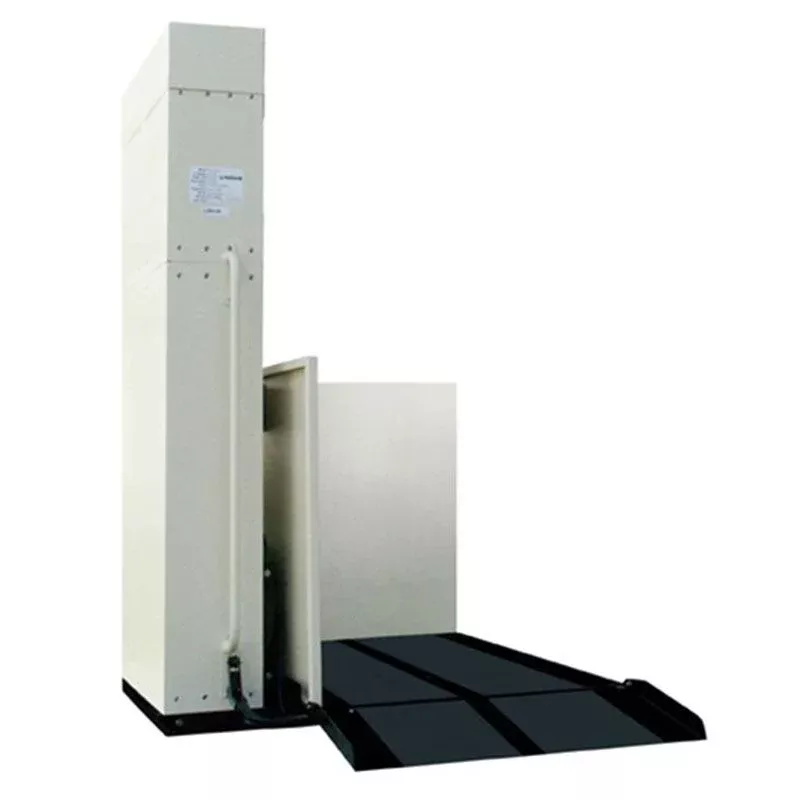

Harmar Highlander VPL Vertical Platform Lift
Harmar’s Residential Vertical Platform Lift (RPL) is a safe, smooth and economical solution to the barriers porches, staircases, decks and other elevation changes can create in and around a home.
Designed from the ground up to be as cost-efficient as possible, the RPL is priced to be competitive with shorter units but built to accommodate most residential applications with ease.
Available in heights from 4 to 6 feet and for use indoors and out.
Features
- Automatic, folding access ramp
- Available in AC and DC models
- Solid platform with non-skid surface for added safety
- Solid 36″ high guard panels
- Weather-resistant design for indoor and outdoor use
- Constant pressure, paddle switch controls with emergency stop button
- Sensitive safety pan on bottom of platform stops the lift if it meets an obstruction
Specifications
- Lifting height4′-6′ (53″ to 77″)
- Rated load600lbs (272 kg)
- Drive Belt driven Acme screw / 90 VDC 1/3 hp motor. Optional 24 VDC battery powered unit
- Power supply115 VAC ““ 20 Amp grounded circuit
- Control circuit24 VAC (Low Voltage Controls)
- Platform: 36″ x 48″ with 36″ high solid guard panels and automatic folding ramp
- Footprint: 50″ x 70″
- Speed: 10 fpm
- Controls: Rocker switch w/emergency stop (key switch optional)
- Manual lowering: Provided
- Safety design standards: ASME A18.1, Section 5 ““ Private Residence Vertical Platform Lifts
- Safety Design: CSA B44.1 / ASME 17.5 ““ Elevator and Escalator Equipment
- Safety features: Safety Pan, Final limit, Acme safety nut with monitor, Non-skid surface
- Warranty1-Year parts/ with Premium Protect Package* see details on warranty certificate
