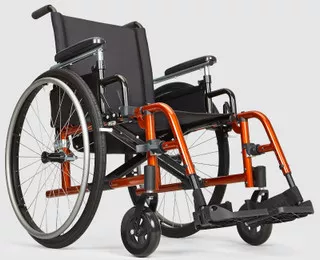

Wheelchair by Ki Mobility
The Catalyst 4C is the lightest, most durable, and energy-efficient K0004 folders on the market today!
The Catalyst line offers a Dual Interlocking Cross Brace. This design creates a frame that locks together so that it minimizes unwanted movement and maximizes the energy transferred in each of your pushes making your push as efficient as possible. The “Between-The-Rails” Seat Design has the seat frame tubing setting side-by-side rather than stacking them atop one another. Instead of the weight of the user resting on the cross brace, the weight is transferred to the side frames. This prevents having to use heavy cross braces which add weight to other manufacturer’s wheelchairs.
Not sure about sizing? See our Wheelchair Measurement Guide.
CATALYST 4C Ultra Lightweight Wheelchair Features
|
|
THE CATALYST DIFFERENCE Catalyst 4 both take advantage of all of the “Catalyst Difference” design features to allow you to fit, adjust and ride with confidence. A defining characteristic of each chair is its axle plate which we will highlight below.. |
|
|
OFFSET AXLE PLATE The Catalyst 4 series axle is mounted less than 1/2″ forward to traditional axle positions. |
|
|
FRONT FRAME STYLES Catalyst 4 offer the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames. The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty. |
|
|
SPOKE Ki standard spoke uses 30 radial spokes to provide a stiff and durable wheel. |
|
|
MAG Exclusive to Ki, the magnesium Maxx Mag wheel creates a sleek, modernized look while providing greater stiffness and lower weight than classic nylon composite mag wheels.Maxx Mag wheels are available in 20”, 22” and 24”. |
CATALYST 4C Folding Wheelchair Specifications
| Transport Weight* | 16 lbs (7.3 kg) |
| Standard Weight | 26 lbs (11.8 kg) |
| Seat Width | 14″ – 22″ (35.6 – 55.9 cm) |
| Seat Depth | 14″ – 20″ (35.6 – 50.8 cm) |
| Front Seat Height | 13.5″ – 21″ (34.3 – 53.3 cm) |
| Rear Seat Height | 12.5″ – 20″ (31.8 – 50.8 cm) |
| Top Frame Tubing Size | 1″ (2.54 cm) |
| Bottom Frame Tubing Size | 1 1/8″ (2.86 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Weight Capacity HD | 350 lbs (158.8 kg) |
*16”x16” Frame, 5”x1” Poly Casters, Swing Away Arm Receivers. Footrest and Rear Wheels removed.
CATALYST 4C Manual Wheelchair Downloads
BrochureUser ManualOrder FormTechnical ManualCatalyst Advantage
Catalyst 4C by Ki Mobility Buyer’s Guide
The Catalyst 4C by Ki Mobility is a highly customizable wheelchair designed for users seeking a blend of performance, comfort, and durability. This wheelchair caters to various needs with its advanced features and adaptable design.
Lightweight Construction
Constructed with a lightweight frame, the Catalyst 4C provides easy maneuverability and effortless handling.
Catalyst 4C by Ki Mobility High-Performance Wheels
The high-performance wheels of the Catalyst 4C ensure smooth navigation and stability across different terrains.
Customizable Seating Options
With customizable seating options, the Catalyst 4C Wheelchair allows users to choose the most comfortable and supportive seating arrangement for their individual needs.
Catalyst 4C Wheelchair Durable Materials
The Ki Mobility Catalyst 4C is made from durable materials that withstand regular use and maintain the wheelchair’s performance and appearance over time.
Maneuverability
The Catalyst 4C offers versatile maneuverability, making it easy to navigate through tight spaces and various surfaces.
Catalyst 4C Wheelchair High Weight Capacity
Designed with a high weight capacity the Catalyst 4C provides secure and comfortable support.
Ki Mobility Catalyst 4C Foldability
The Catalyst 4C features a convenient foldable design, allowing for easy transport and storage when not in use.
Catalyst 4C by Ki Mobility Review
The Catalyst 4C by Ki Mobility combines a lightweight construction with a highly adjustable frame and customizable features. Its high-performance wheels and durable materials make it a reliable choice for users seeking both comfort and functionality in their wheelchair.
